IBM i (DB2) Dialect for Knex

IBM i (DB2) Dialect for Knex Hero Image

Github Repo

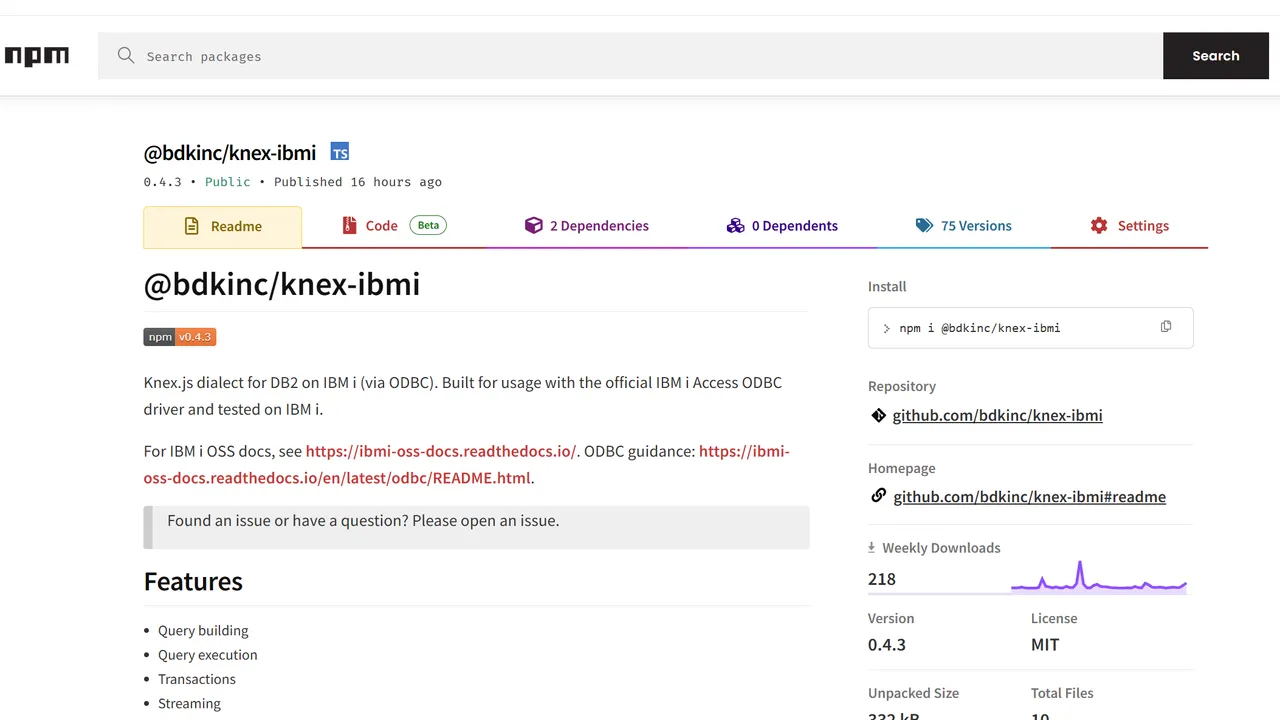

NPM Package

When building Node.js applications on IBM i I traditionally reached straight for the low‑level node-odbc driver. That works, but for most projects I prefer expressing data access with a query builder (or ORM) that maps more closely to business intent. Knex is a popular, lightweight query builder and is used under the hood by other frameworks (for example Feathers).

This project implements a first‑class Knex dialect for IBM i DB2 over ODBC. It started as a fork of the long unmaintained knex-db2 but was ultimately a ground‑up rewrite in TypeScript with modern packaging (ESM + CJS builds, type defs) and IBM i specific behavior.

The current version (see NPM badge) is significantly beyond the original scope: it includes a custom migration runner tailored for IBM i, multi‑row insert strategies, returning emulation for UPDATE/DELETE, streaming with adaptive fetch sizing, improved error handling, and pragmatic identity retrieval.

Below is an updated overview of what the dialect offers today.

Quick Start

import { knex } from 'knex'
import { DB2Dialect, DB2Config } from '@bdkinc/knex-ibmi'

const config: DB2Config = {
  client: DB2Dialect,
  connection: {
    database: '*LOCAL',
    host: '127.0.0.1',
    port: 8471,
    user: 'user',
    password: 'password',
    driver: 'IBM i Access ODBC Driver',
    connectionStringParams: {
      DBQ: 'MYLIB',
      CMT: 0,
      NAM: 1,
      ALLOWPROCCALLS: 1,
    },
  },
  pool: { min: 2, max: 10 },
  ibmi: { multiRowInsert: 'auto' },
}

export const db = knex(config)

Feature Highlights

  • Query building + execution fully integrated with Knex 3
  • Transactions (including custom transaction class)
  • Adaptive streaming (.stream({ fetchSize })) with cursor + async iteration support
  • Multi‑row insert strategies: auto, sequential, disabled
  • Emulated returning for INSERT, UPDATE, DELETE
  • Sequential identity retrieval using IDENTITY_VAL_LOCAL()
  • IBM i specific migration runner (bypasses fragile Knex locking on DB2)
  • Configurable per‑row transactional sequential inserts
  • Lenient identifier handling (no forced quoting / case issues)
  • Enhanced error classification (connection / timeout / SQL) with optional DEBUG logging
  • Fully typed (TypeScript), ESM + CJS exports, ships its own CLI

Multi‑Row Insert Strategies

Configure via the ibmi.multiRowInsert option:

const db = knex({
  client: DB2Dialect,
  connection: {/* ... */},
  ibmi: { multiRowInsert: 'auto' } // 'auto' | 'sequential' | 'disabled'
})
  • auto: Single INSERT with multiple VALUES. Returns all rows (fallback) when safe.
  • sequential: Inserts rows individually; captures identity each time. Optional transactional wrapping via ibmi.sequentialInsertTransactional.
  • disabled: Backwards compatible single‑row behavior.

Use sequential when you need deterministic identity values per row; auto for highest throughput.


Emulated Returning

Because native RETURNING is not broadly exposed via ODBC, the dialect emulates it:

  • INSERT (auto): wraps insert (internally may leverage FINAL TABLE) to surface inserted rows or all columns when unspecified.
  • INSERT (sequential): per‑row insert + IDENTITY_VAL_LOCAL().
  • UPDATE: executes the update then re‑selects affected rows using the original WHERE.
  • DELETE: selects rows first, then deletes, returning the previously selected data.

Return only the columns you need (.returning(['ID','STATUS'])) to reduce overhead.


Streaming

Large result sets can be consumed via a cursor stream with adaptive fetch sizing:

const stream = await db('LARGETABLE').select('*').stream({ fetchSize: 200 })
for await (const row of stream) {
  // process row
}

Complex analytical queries (joins / aggregates / order) auto‑bump fetch size; you can still override manually.


Migration Runner (IBM i Specific)

Standard Knex migrations struggle on IBM i due to auto‑commit DDL + locking. This dialect ships a purpose‑built runner:

import { createIBMiMigrationRunner } from '@bdkinc/knex-ibmi'
const runner = createIBMiMigrationRunner(db, {
  directory: './migrations',
  tableName: 'KNEX_MIGRATIONS',
  schemaName: 'MYSCHEMA'
})
await runner.latest()

CLI usage:

npx ibmi-migrations migrate:latest
npx ibmi-migrations migrate:rollback
npx ibmi-migrations migrate:status

Supports JS, TS, MJS, CJS migration files; tracks batches; provides rollback, status, current version, pending list.


Error Handling & Debugging

Errors are classified (connection / timeout / SQL). Set DEBUG=true to see concise debug output including timing and statement preparation diagnostics (especially around migration table creation & DML returning emulation paths).


Current Maturity

The library has moved beyond early alpha; it has been running in production with stability. Remaining areas of ongoing improvement:

  • Even richer diagnostic logging (structured log hooks)
  • Additional edge‑case tuning for large batch sequential inserts
  • Potential Beta tag soon once broader community feedback is incorporated

If you try it and hit an edge case: open an issue—real‑world feedback helps solidify the API.


Closing Thoughts

Knex becomes a much more attractive option on IBM i when you can rely on correct streaming, transaction semantics, pragmatic returning emulation, and safe migrations. This dialect aims to give you those building blocks without forcing heavy abstractions.

Give it a spin and let me know what you build with it.
